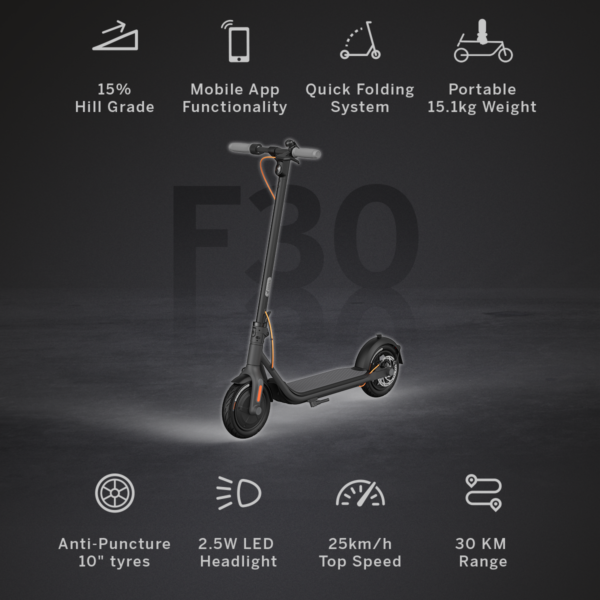

The F30 features front wheel E-ABS, rear wheel mechanical disc brake, double brake. It has 2.5W highlight LED headlights and 10-inch large wheel diameter pneumatic tires. The electric scooter offers practical performance and 30km long range with a 300W high-power motor and 15% climbing capacity.
Vehicle: 1143*480*1160mm; Folding size: 1143*480*495mm
Front and rear tires: 10'' pneumatic tire
Overcharge, overheat, over-discharge, short circuit and overcurrent protection
Electronic brake+Disc brake
Headlight + taillight
Q: How do you set up the Kickscooter?
A: 1. You need to download the Segway-Ninebot App on your phone. This can be done by scanning the QR code inside the user manual or shown below.
- Turn on the scooter by pressing the power button on Control Panel
- Turn on Bluetooth on your
- Follow the instructions on APP to pair the Kickscooter with the APP to unlock speed
Q: What is the Segway-Ninebot F Series?
These scooters is a short-medium distance transportation product with mobile App interactive function. Use in multiple life scenarios, with portability and functionality. Practical and high- value, it makes your life more fun and free.
Q: How many models does the Segway-Ninebot F series scooter have?
F20A, F30, F40A
Q: Who is the Ninebot F series scooter for?
The applicable age of F series scooters is 14-60 years old, the applicable height is 120-200cm, and the maximum load: F20A maximum load is 100kg; F30, F40A maximum load is 120kg.
When riding, please wear a helmet and protective gear.
Q: What is differences between F20A/F30/F40A? Which one is more suitable to buy?
There is not a big difference between them, there are some slight differences in battery, motor and maximum speed. If it is a short distance you travel, it is recommended to buy F20A. For
a comprehensive cost-effective model, you can choose F30. If you have requirements for a longer distance travel and acceleration, you can choose F40A
Q: What is charge time of Ninebot F-series scooters?
F20A about 5.5h, F30 about 5h, F40A about 6.5h
Q: What is motor power of Ninebot F-series scooter ?
F20A nominal power is 250W, F30 nominal power is 300W, F40A nominal power is 350W
Q: What is battery nominal capacity of Ninebot F-series scooter?
Battery nominal capacity of F20A is 5.1Ah, battery nominal capacity of F30 is 7.65Ah, battery nominal capacity of F40A is 10.2Ah
Q: What is size of front/rear wheel ?
Front and rear wheel are both 10 inch
Q: What is the tyre pressure of Ninebot F-series scooters?
Q: What is the payload of Ninebot F-series scooters?
F20A is 100kg, F30&F40A is 120kg
Q: Compared with similar products, what is the advantage of Ninebot F-series scooters?
1.Front and rear dual brake system—- Safe+Trusty
2.10 inch large wheel diameter pneumatic tire—- Smooth handling and comfortable riding
- One-key operation and multi-mode optional Stylish and intuitive dashboard Easy to use
- Fashionable appearance, brand quality, super high value
How to inflate the scooter tyre?
- Unscrew the valve cap
- Connect the valve stem extension to the tyre valve stem Connect valve stem extension with pump
4.Inflate tire until 45~50psi, stop inflater and remove valve stem extension, re-install valve cap
Q: How many speed mode are available? How to change the speed mode?
Total 3 speed modes: ECO / standard mode D / Sport mode S
Speed mode change method: Power on status, then double click power button to change speed mode. The display will indicate which mode you are in, ( ECO, D or S will be illuminated)
Q: How do you ride the scooter? (Basic Guide)
- Gliding: Stand on the foot board with one foot and push off with the other foot to start
- Speed up: Have both feet on the foot board and stand Press the throttle to speed up when you are balanced.
- Slow down: Slow down by releasing the throttle and squeezing the brake Higher energy recovery level can help slow down
- To turn, slightly shift your body in the desired direction and turn the handlebar
Q: How to operate the headlight?
Power on status, click power button one time to switch on/off the headlight
Q: How to operate the taillight?
Power on status, click power button one time to switch on/off the taillight
Q: How to power on?
Short press power button on dashboard, a beep is heard and the display shows normal, and scooter is powered on
Q: How to power off?
Long press the power button on the dashboard for three seconds, a beep is heard and the display shuts down. Scooter powered off.
Q: How to use the brake?
Squeeze the brake lever on the left hand side to brake
Q: How to charge?
1.Charge port is located behind the logo stamp on the front of the frame: open charge port 2.Connect charger with charge port, then connect charger with power. Charger indicator light showing red means scooter is charging
3.Charge finished, lock charge port plug
Charge indicator light: Red = Charging Green = Charge finished
Q: How to open cruise mode on the APP?
Swipe from bottom to top on the main interface > tap Cruise mode to Yes > cruise mode button changes to dark gray.
To commence cruise mode during riding, press and hold the throttle finger for 5 seconds. After hearing the “Beep” sound, it succeeds.
To exit cruise mode, press the brake or throttle to exit cruise mode
Q: How to adjust energy recovery on the APP?
Swipe from bottom to top on the main interface > Tap Energy recovery > Tap Energy recovery level setting > Choose Energy recovery level: Weak/Medium/Strong”
Q: Can the rear fender of the Ninebot F series scooter be stepped on or braked?
No, F series scooter’s rear fender doesn’t have a brake function, do not stand on the rear fender
Q: What is the safe value of the turning angle of Ninebot F series scooter? Is it dangerous to turn too fast?
Scooter left or right max turning angle is 60°. When riding on a turn, you need to slow down and before making a turn. The faster the speed, the less sharp the turn that you will be able to achieve safely. If the turn angle of the wheel exceeds 60°, there may be a problem with the anti- rotation film, and you need to contact after-sales support.
