DISCLAIMER AROUND SPEED AND RANGE： THE PRODUCT WAS TESTED FULLY CHARGED, WITH AN AVERAGE LOAD OF 75KG-85KG, AT A NORMAL TEMPERATURE ON A NORMAL PAVED ROAD BETWEEN THE SPEEDS OF 0-25KM/H. THE RESULTS MAY VARY BASED ON DIFFERENCES IN TEMPERATURE, LOAD, WIND SPEED, ROAD CONDITIONS AND OTHER FACTORS.
PLEASE NOTE: EACH STATE AND TERRITORY IN AUSTRALIA HAS A DIFFERENT SET OF RULES AND REGULATIONS PERTAINING TO THE USAGE OF E-SCOOTERS, E-BIKES AND E-BOARDS (INCLUDING WHERE E-SCOOTERS, E-BIKES AND E-BOARDS CAN LEGALLY BE USED AND WHETHER E-SCOOTERS, E-BIKES AND E-BOARDS NEED TO BE REGISTERED WITH THE RELEVANT ROAD TRAFFIC AUTHORITY). ANY USER OF THIS PRODUCT MUST ENSURE THAT THAT THEY CHECK AND ABIDE BY THEIR LOCAL BY-LAWS AND USE RESPONSIBLY. RIDE WITH CAUTION AND ALWAYS WEAR A HELMET AND PROTECTIVE GEAR WHEN RIDING YOUR E-SCOOTER, E-BIKE AND E-BOARD. BEFORE RIDING YOUR E-BIKE, E-SCOOTER AND E-BOARD ENSURE THE BOLTS ARE TIGHT AND THE BATTERY IS CHARGED.
CAUTION: DANGER MAY OCCUR WHEN THE KICKSTAND IS ACCIDENTALLY KNOCKED DOWN OR CATCHES OBJECTS IN COMPLEX TERRAINS. DISMOUNT YOUR KICKSTAND BEFORE TRAIL RIDING!
Please Note: Modifications, alterations and installation of parts that are not Sur-ron parts or supplied as original equipment are not covered by warranty. Sur-ron will not take any responsibilities for any problems arising from modifications, alterations or aftermarket replacement on the following parts (including but not limited to): battery, motor, controller, throttle, transmission system, suspension system and brake system etc.
Following is the potential risk that may be cause by the above modifications:
Modified controller: It may cause the bike system failure, battery discharge failure, motor overheating and demagnetization, loss of various diagnostic and protection functions.
Modified battery: it may cause the controller failure, motor malfunctions. It may even cause serious injury or damage property.
Any power system modification that has not been authorised by Sur-ron may cause wheelset failure, transmission system overload, brake system overload and even bike frame failure.

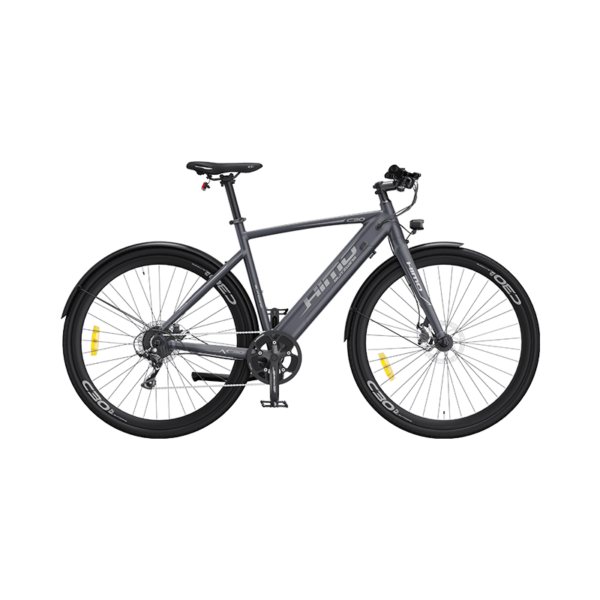

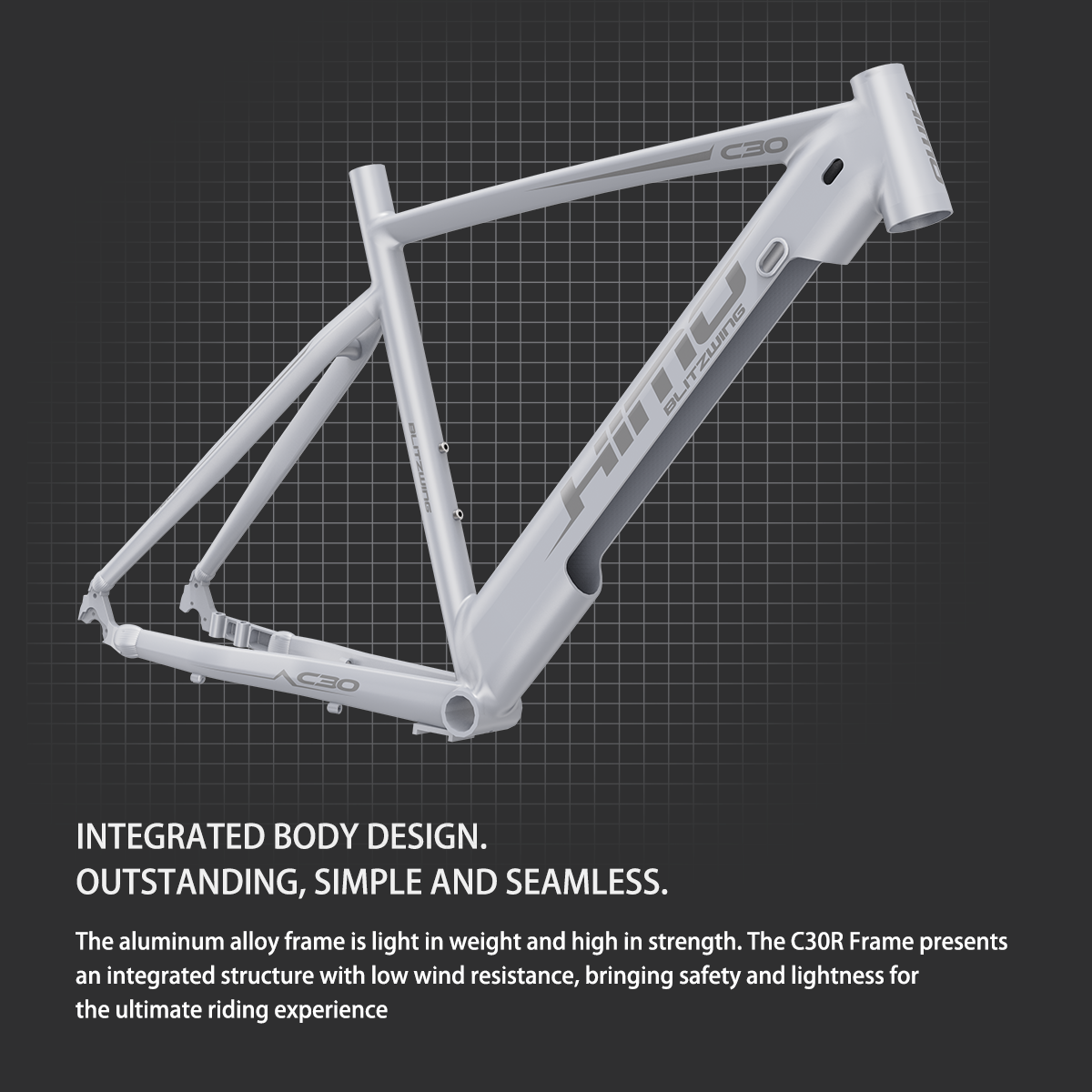

It features an aluminium alloy frame with Tektro front and rear disc brakes. It can go up to 80km with a max speed of 25km/h. There are 9 different speeds.
Please Note: Each state and territory in Australia has a different set of rules and regulations pertaining to the usage of e-scooters, e-bikes and e-boards (including where e-scooters, e-bikes and e-boards can legally be used and whether e-scooters, e-bikes and e-boards need to be registered with the relevant road traffic authority). Any user of this product must ensure that that they check and abide by their local by-laws and use responsibly. Ride with caution and always wear a helmet and protective gear when riding your e-scooter, e-bike and e-board.
What height is this bike suitable for people to ride?
The recommended height is 165cm-190cm. Does it need to be assembled after receiving the bike?
After the bike is unboxed, You only need to start the pedal part of the installation. According
to the user’s height and operating habits you will need to adjust the handlebar angle. About cycling patterns
The C30 is an electric power assisted bicycle. It has no pure electric function. There are
6 power gear levels (0-5). No power output in gear 0. The power is from low to high in gear
1-5 (the higher the gear, the stronger the power, the higher the power consumption, the
easier the riding, and vice versa). Can I start the bike while charging it?
Do not start the bike while charging. Otherwise, it is easy to cause damage to the charger. What is the power supply for the taillight? Why doesn’t it light up after a period of time?
The taillights are independently powered. Under normal temperature conditions, reasonable
use for 5-6 months.
When the power is low. Please replace the battery in time. The battery model is No.7 battery. After the bike has been used for a period of time, why can it appear the braking is not the same?
The brake pads become worn down. The thickness of the brake pads changes, resulting in
changes in the brake sensitivity. How to adjust the disc brake?
Turn the black knob on the left side of the brake and the right adjustment screw can be
respectively adjusted on both sides of the brake pad and the gap between the disc
(the smaller the gap, the better the brake effect). Precautions before riding
1. Check whether the power supply circuit and lighting are good before riding;
2. Check whether the reflector is damaged before riding;
3. Before riding, check whether the safety buckle of each part of the bike is tight and whether
the insurance shaft is properly operated to avoid accidents;
4. Before riding, check whether the braking system of the bike is in good condition.
5. Before riding, check whether the tire pressure is sufficient to avoid affecting the mileage and cycling experience of the vehicle.
