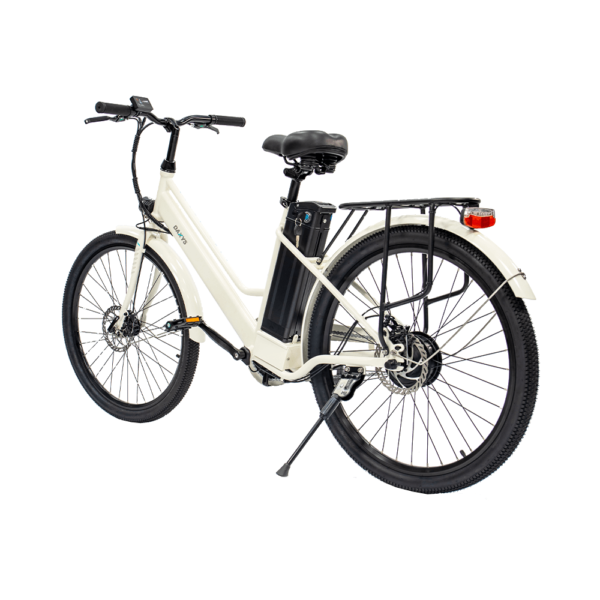

Daxys Lynx Step Through E-Bike 26”

The Daxys Lynx is a classic step-through ebike with a single gear. Designed for comfort and accessibility – for an enjoyable ride that will have you purring like a wild Mountain Lynx.

From $999.00

DISCLAIMER AROUND SPEED AND RANGE
THE PRODUCT WAS TESTED FULLY CHARGED, WITH AN AVERAGE LOAD OF 75KG-85KG, AT A NORMAL TEMPERATURE ON A NORMAL PAVED ROAD BETWEEN THE SPEEDS OF 0-25KM/H. THE RESULTS MAY VARY BASED ON DIFFERENCES IN TEMPERATURE, LOAD, WIND SPEED, ROAD CONDITIONS AND OTHER FACTORS.

PLEASE NOTE:
EACH STATE AND TERRITORY IN AUSTRALIA HAS A DIFFERENT SET OF RULES AND REGULATIONS PERTAINING TO THE USAGE OF E-SCOOTERS, E-BIKES AND E-BOARDS (INCLUDING WHERE E-SCOOTERS, E-BIKES AND E-BOARDS CAN LEGALLY BE USED AND WHETHER E-SCOOTERS, E-BIKES AND E-BOARDS NEED TO BE REGISTERED WITH THE RELEVANT ROAD TRAFFIC AUTHORITY).  ANY USER OF THIS PRODUCT MUST ENSURE THAT THAT THEY CHECK AND ABIDE BY THEIR LOCAL BY-LAWS AND USE RESPONSIBLY.  RIDE WITH CAUTION AND ALWAYS WEAR A HELMET AND PROTECTIVE GEAR WHEN RIDING YOUR E-SCOOTER, E-BIKE AND E-BOARD. BEFORE RIDING YOUR E-BIKE, E-SCOOTER AND E-BOARD ENSURE THE BOLTS ARE TIGHT AND THE BATTERY IS CHARGED.

CAUTION:
DANGER MAY OCCUR WHEN THE KICKSTAND IS ACCIDENTALLY KNOCKED DOWN OR CATCHES OBJECTS IN COMPLEX TERRAINS.
DISMOUNT YOUR KICKSTAND BEFORE TRAIL RIDING!

Please Note: Modifications, alterations and installation of parts that are not Sur-ron parts or supplied as original equipment are not covered by warranty. Sur-ron will not take any responsibilities for any problems arising from modifications, alterations or aftermarket replacement on the following parts (including but not limited to): battery, motor, controller, throttle, transmission system, suspension system and brake system etc.

Following is the potential risk that may be cause by the above modifications:

  1. Modified controller: It may cause the bike system failure, battery discharge failure, motor overheating and demagnetization, loss of various diagnostic and protection functions.
  2. Modified battery: it may cause the controller failure, motor malfunctions. It may even cause serious injury or damage property.

Any power system modification that has not been authorised by Sur-ron may cause wheelset failure, transmission system overload, brake system overload and even bike frame failure.

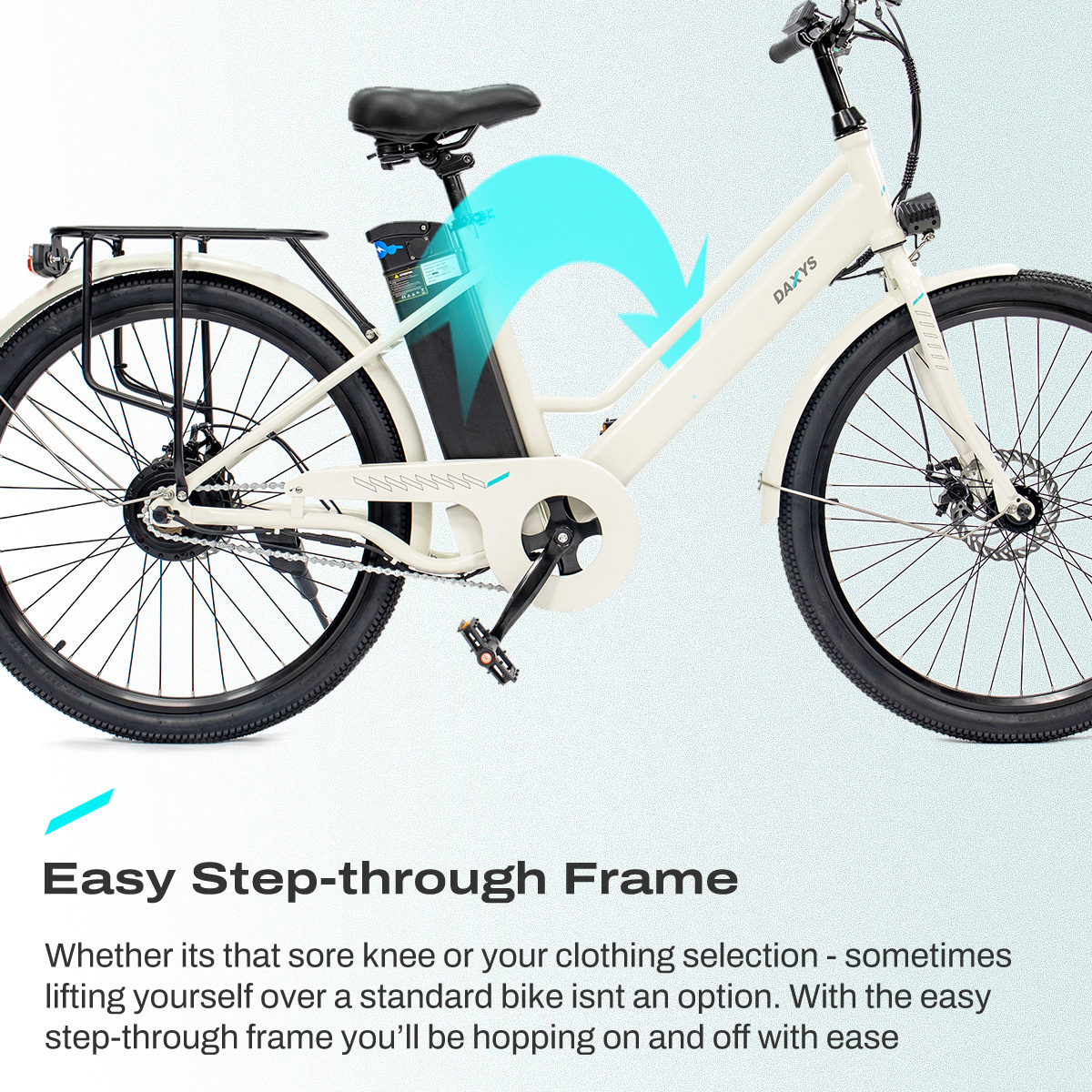

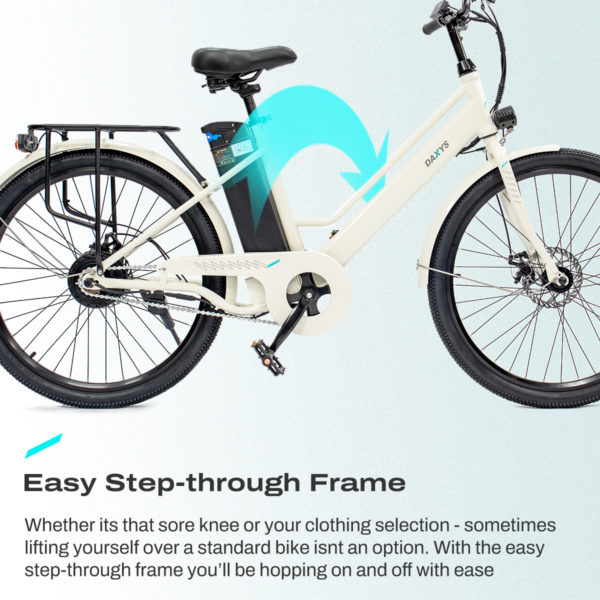

Designed for comfort and accessibility – for an enjoyable ride that will have you purring like a wild Mountain Lynx.

NOTICE TO CUSTOMERS: Please carefully follow instructions when installing the pedals on this e-bike. There are specific right and left pedals for each side and installing them incorrectly will result in damage to the bike.

Please Note: Each state and territory in Australia has a different set of rules and regulations pertaining to the usage of e-scooters, e-bikes and e-boards (including where e-scooters, e-bikes and e-boards can legally be used and whether e-scooters, e-bikes and e-boards need to be registered with the relevant road traffic authority). Any user of this product must ensure that they check and abide by their local by-laws and use responsibly. Ride with caution and always wear a helmet and protective gear when riding your e-scooter or e-bike.

Specification
Product Size
1040*620*1840mm
Product Weight (kg)
20.5kg
Packaging Size (mm)
760*235*1600mm
Packaging Weight (kg)
32.2kg
Max weight bearing (kg)
100kg
Recommended rider age
16 years and over
Recommended rider height (cm)
165-180cm
Top speed (km/h)
25
Approx. range (km)
15-40
Battery charge life
800 Cycles
On-road/Off-road
On-road
Traversable terrain
Sealed surfaces- asphalt & concrete roads
Max. incline (degrees)
N.A. for Bikes - refer to torque - 42N.M
Operating temperature range (C)
-10-50 C°
Storage temperature range (C)
-10-50 C°
IP rating
IP65 for Left Controller
Waterproof
No
Water Resistant
Yes
Tyre type
Clincher tyres with inner tube
Tyre size (inches)
26x2.125"
Braking method
Mechanical disc brakes
Braking distance (metres)
3
Frame material
Iron
Remote Control(s)
No
Time to full charge
2-3h
Battery nominal voltage
36v
Max. charging voltage
42v
Nominal energy (Wh)
180Wh
Battery capacity (mAh)
5Ah
Riding modes
Pedal assist mode (PAS) 0-3 + walk assist mode
Motor max. power (watts)
350W
Motor nominal power (watts)
250W
Charger output power (watts)
84W
Charger input voltage
100-240V
Charger output voltage
42V
Charger output current (amps)
2.0A Max
Manufacturer's warranty
1 Year

Product FAQ’s

Q: How many pedal assistance modes does the Lynx have and how do I change between them. Can I change modes while riding?

A: Lynx has three pedal assistance modes. Press the MODE button located left integrated controller to switch between PAS 0-3. Modes can be changed while riding.

Q: How do I operate the lights? Where are the lights located?

A: Press the LIGHT button located left integrated controller to operate the lights. There is one headlight & one taillight.

Q: How do I power Lynx on/off?

A: Press the ON / OFF button located left integrated controller to operate the lights.

Q: What type of terrain is Lynx appropriate for?

A: Suggestions are outlined below:
1: Regular paved surface where the tyres can maintain ground contact. Low slopes.
2: Unpaved and gravel roads. Reasonably smooth off-road trails. Medium slopes.

Q: What is the target rider/audience for this product?

A: Usage: Daily on-road commuting. Recommended rider height: 160-185cm

Q: What tools will I need to tighten loose screws?
A: The Lynx included a multi-function tool to help you tighten loose screws

Q: When will pedal assistance kick in?
A: Pedal assistance will start when the power and PAS mode is turned on and you begin pedalling

Q: Does this Product come with app connectivity?
A: No.

Q: Can I ride this in any temperature – what is the operating temperature range?
A: The recommended operating temperature is -10 – 50°C

Q: Does the product need any special regular care, storage etc?
A: When you remove the battery to store it, make sure it is in a safe, climate-controlled space. If the bike is not used for a longer period, it is best to remove the battery from the bike. Charge when needed, at least every 3 months.
When charging the battery, make sure it is in a dry location and be sure it’s in a place where it won’t cause a fire.

Q: Can I take my electric bike over jumps or off high drops?
A: No, Lynx is not designed for taking over jumps and taking off high drops.
