DISCLAIMER AROUND SPEED AND RANGE： THE PRODUCT WAS TESTED FULLY CHARGED, WITH AN AVERAGE LOAD OF 75KG-85KG, AT A NORMAL TEMPERATURE ON A NORMAL PAVED ROAD BETWEEN THE SPEEDS OF 0-25KM/H. THE RESULTS MAY VARY BASED ON DIFFERENCES IN TEMPERATURE, LOAD, WIND SPEED, ROAD CONDITIONS AND OTHER FACTORS.
PLEASE NOTE: EACH STATE AND TERRITORY IN AUSTRALIA HAS A DIFFERENT SET OF RULES AND REGULATIONS PERTAINING TO THE USAGE OF E-SCOOTERS, E-BIKES AND E-BOARDS (INCLUDING WHERE E-SCOOTERS, E-BIKES AND E-BOARDS CAN LEGALLY BE USED AND WHETHER E-SCOOTERS, E-BIKES AND E-BOARDS NEED TO BE REGISTERED WITH THE RELEVANT ROAD TRAFFIC AUTHORITY). ANY USER OF THIS PRODUCT MUST ENSURE THAT THAT THEY CHECK AND ABIDE BY THEIR LOCAL BY-LAWS AND USE RESPONSIBLY. RIDE WITH CAUTION AND ALWAYS WEAR A HELMET AND PROTECTIVE GEAR WHEN RIDING YOUR E-SCOOTER, E-BIKE AND E-BOARD. BEFORE RIDING YOUR E-BIKE, E-SCOOTER AND E-BOARD ENSURE THE BOLTS ARE TIGHT AND THE BATTERY IS CHARGED.
CAUTION: DANGER MAY OCCUR WHEN THE KICKSTAND IS ACCIDENTALLY KNOCKED DOWN OR CATCHES OBJECTS IN COMPLEX TERRAINS. DISMOUNT YOUR KICKSTAND BEFORE TRAIL RIDING!
Please Note: Modifications, alterations and installation of parts that are not Sur-ron parts or supplied as original equipment are not covered by warranty. Sur-ron will not take any responsibilities for any problems arising from modifications, alterations or aftermarket replacement on the following parts (including but not limited to): battery, motor, controller, throttle, transmission system, suspension system and brake system etc.
Following is the potential risk that may be cause by the above modifications:
Modified controller: It may cause the bike system failure, battery discharge failure, motor overheating and demagnetization, loss of various diagnostic and protection functions.
Modified battery: it may cause the controller failure, motor malfunctions. It may even cause serious injury or damage property.
Any power system modification that has not been authorised by Sur-ron may cause wheelset failure, transmission system overload, brake system overload and even bike frame failure.

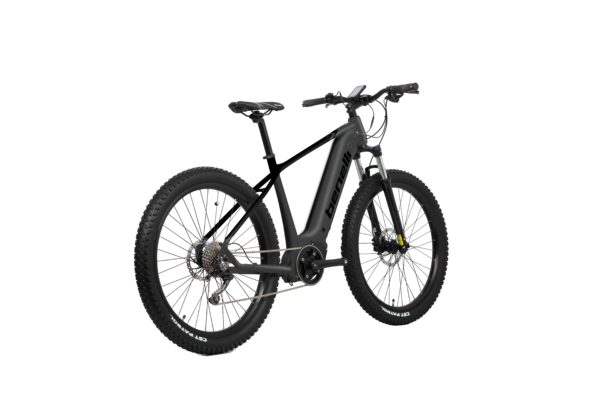

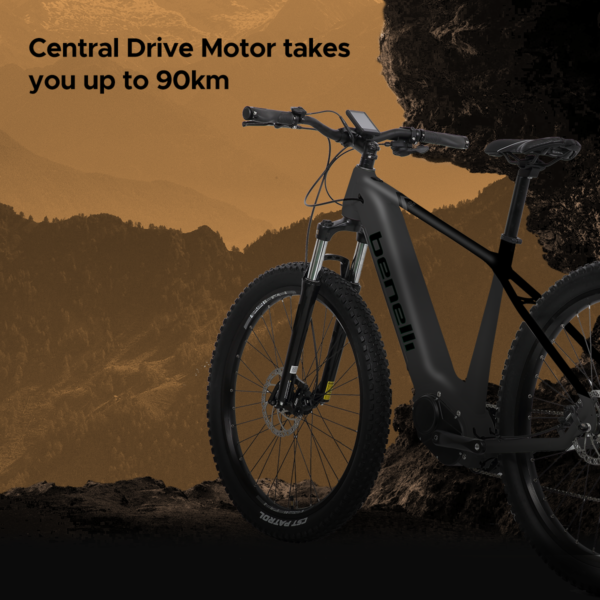

The Benelli Mantus is an electric assisted mountain bike with Shimano gears. It features a 250 watt centre motor that has a large torque. It has a front fork suspension with front and rear disc brakes. With pedal assistance you can travel up to 25km/h.
Please Note: Each state and territory in Australia has a different set of rules and regulations pertaining to the usage of e-scooters, e-bikes and e-boards (including where e-scooters, e-bikes and e-boards can legally be used and whether e-scooters, e-bikes and e-boards need to be registered with the relevant road traffic authority). Any user of this product must ensure that that they check and abide by their local by-laws and use responsibly. Ride with caution and always wear a helmet and protective gear when riding your e-scooter, e-bike and e-board. Before riding your e-bike, e-scooter and e-board ensure the bolts are tight and the battery is charged.

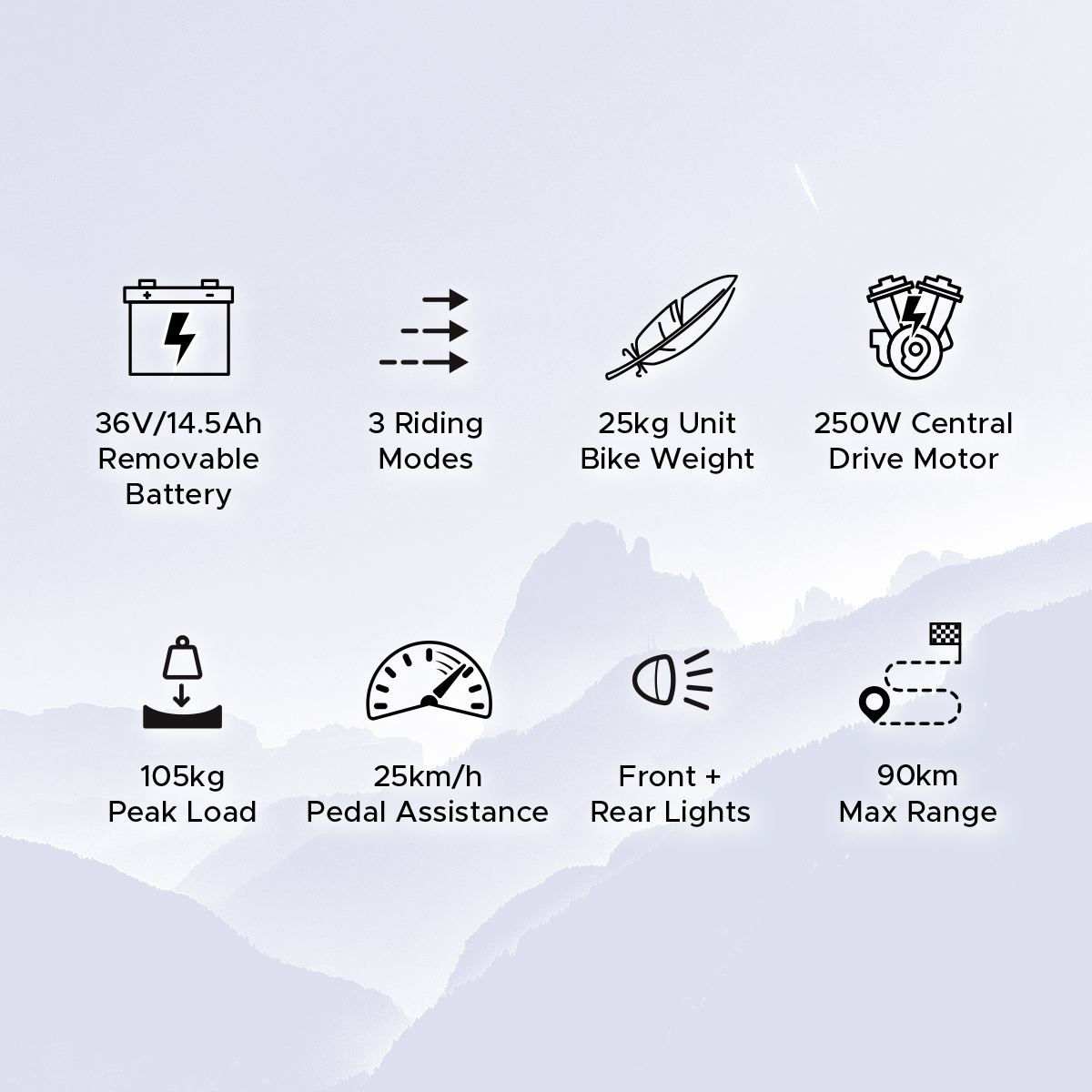

Specifications
Power Assist Mileage
90km
Weight(kg)
26
Dimensions(mm)
1890*700*1140
Max Speed(km/h)
25 (Electric assisted)
Tyre Size(inch)
27.5
Peak Load(kg)
105

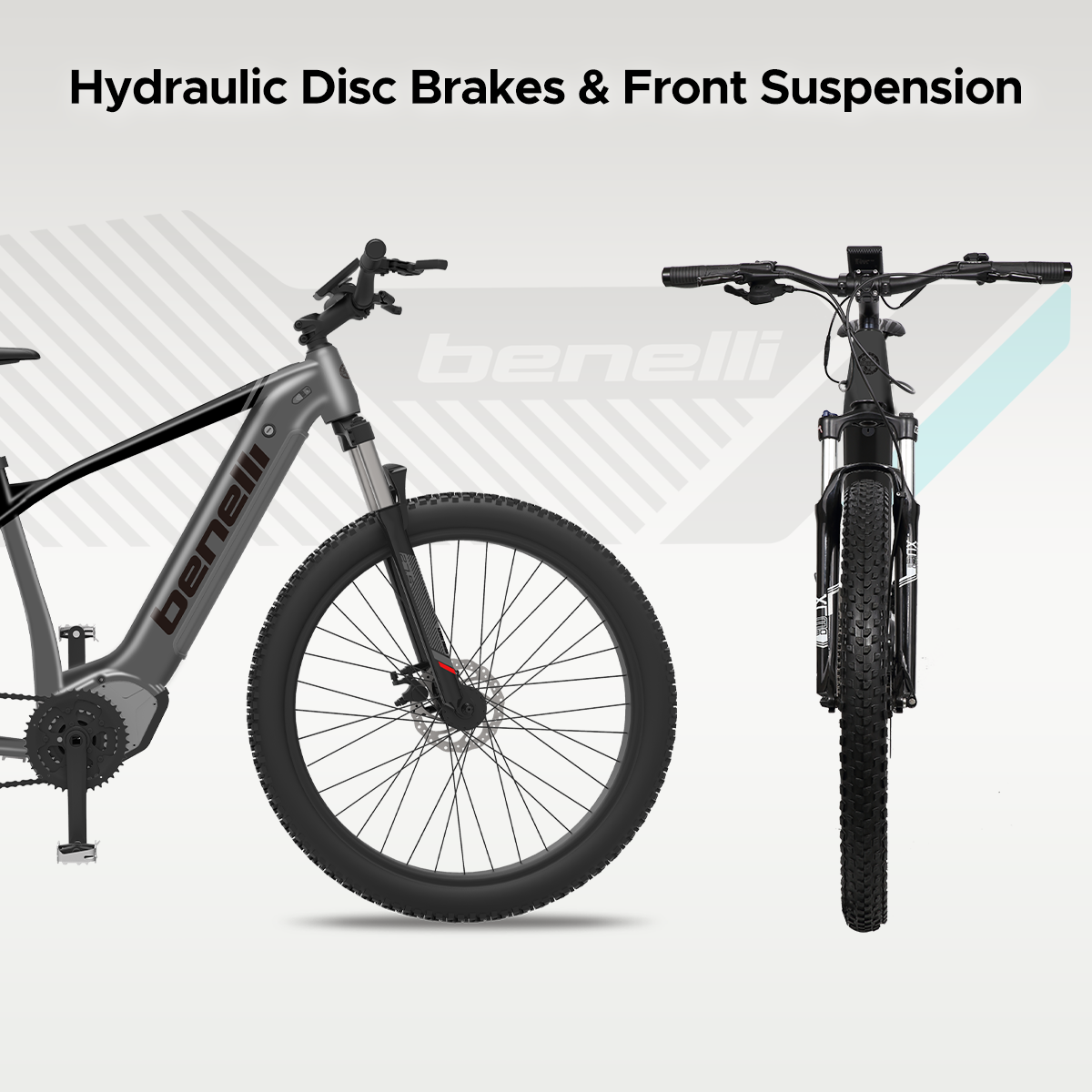

Brakes
Front and Rear Hydraulic Disc Brakes
Brake Model
GEMMA GA-900 Hydraulic
Battery
36V 14.5Ah
Number of Batteries
1
Derailleur
SHIMANO DEORE 1x10 speed
Frame Material
Aluminium alloy
Electric Assistance
3 Levels
Product FAQ’s
Q: How do you adjust the electric pedal assistance?
A: In manual shift mode, on the controller – short press the “+” or “-” button.
Lowest gear is 1, highest is gear 3. The default is gear is gear 1 when the meter is turned on. 0 means neutral gear without power assistance.
Q: How do you slow down and brake on the Mantus MTB?
A: First, stop pedaling, then release the throttle and apply the brake by squeezing the brake lever on the left.
Q:How many speeds modes are there on the Mantus MTB?
A:Three modes available.
Q: How far can you go on a Mantus MTB?
A: Up to 90km.
Q: How heavy is a Mantus MTB?
A: 26kg.
Q: What is the recommended age for riding Mantus MTB?
A:Over 16.
Q: What is the load of a Mantus MTB?
A: 30-105kg.
Q: How long does it take to charge a Mantus MTB?
A: Charging time depends on the battery status; it takes up to 8 hour for a full charge from zero percent.
Q: How fast can Mantus MTB go? *under good road condition and good weather condition
